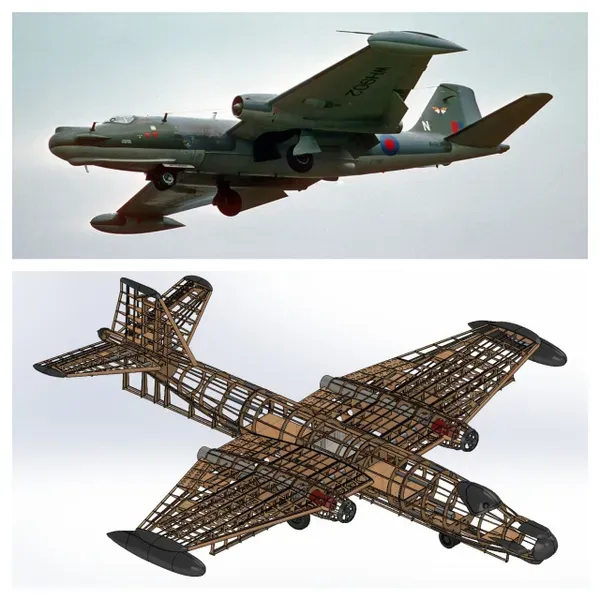

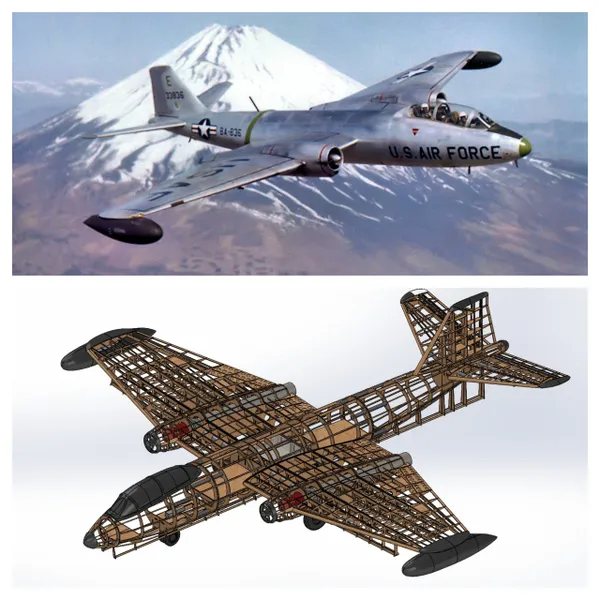

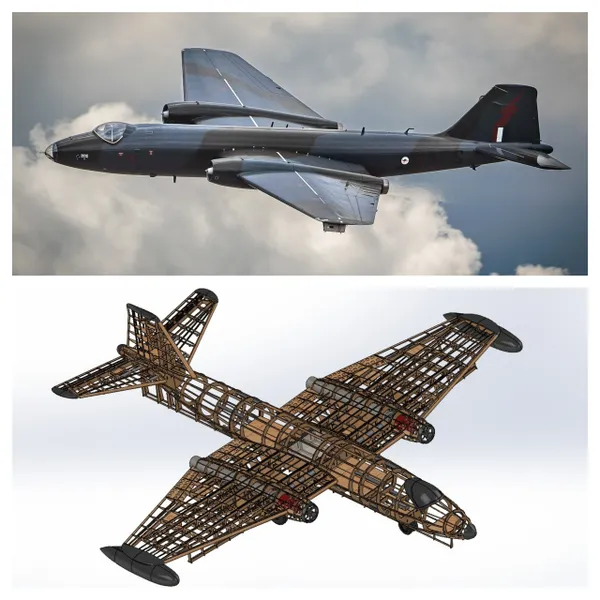

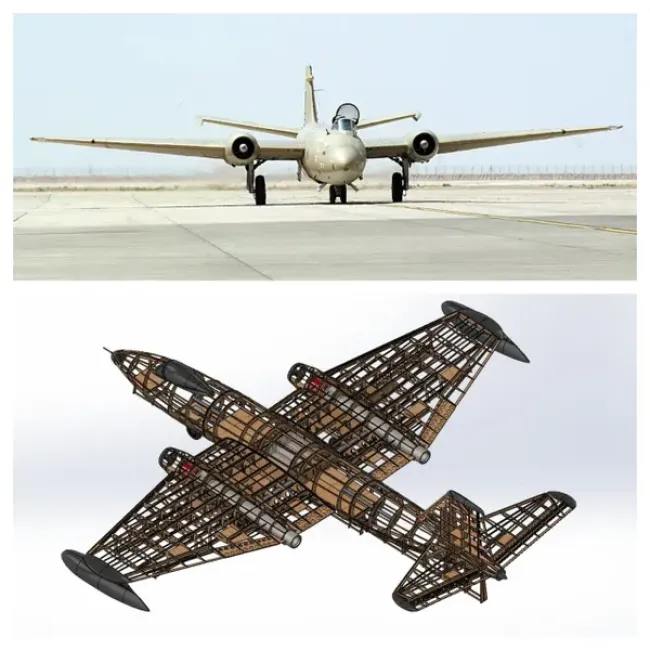

English Electric Canberra
Experience the thrill of flying a Cold War icon with our English Electric Canberra RC model in 1:6 scale—designed for ambitious model builders and advanced RC pilots. With a wingspan of 3.25 meters, this twin-engine jet combines aerodynamic performance, scale accuracy, and intelligent design.
Technical data:
- Scale: 1:6
- Wingspan: 3.25 meters (128“) – 3.30 meters (130”) with fuel tanks
- Power: Two 100N class turbines
- Construction: Laser-cut plywood and balsa, fully planked wings
- Modular design: Removable wings and three-piece fuselage.
Aircraft data:
- Wing root profile: NACA 64012
- Wing tip profile: NACA 64010
- Wing root angle: 2°
- Washout: -1.5°
- Thrust line angle: 2°
- Tail profile: NACA 0012
- Angle of horizontal stabilizer: 1° Angle of attack
Variants:
- WT333 – Research version
- B.2 – Standard bomber
- PR.9 – Photo reconnaissance
- T.17 – Radar trainer
- Martin B-57 – U.S. variant
This Laser-cut basic kit manufactured under license, consisting of:
Basic wooden kit (fuselage frames, ribs, struts, wing tips
and other parts made of aviation plywood and lightweight, selected balsa wood.
All parts are laser-cut and can be installed immediately.

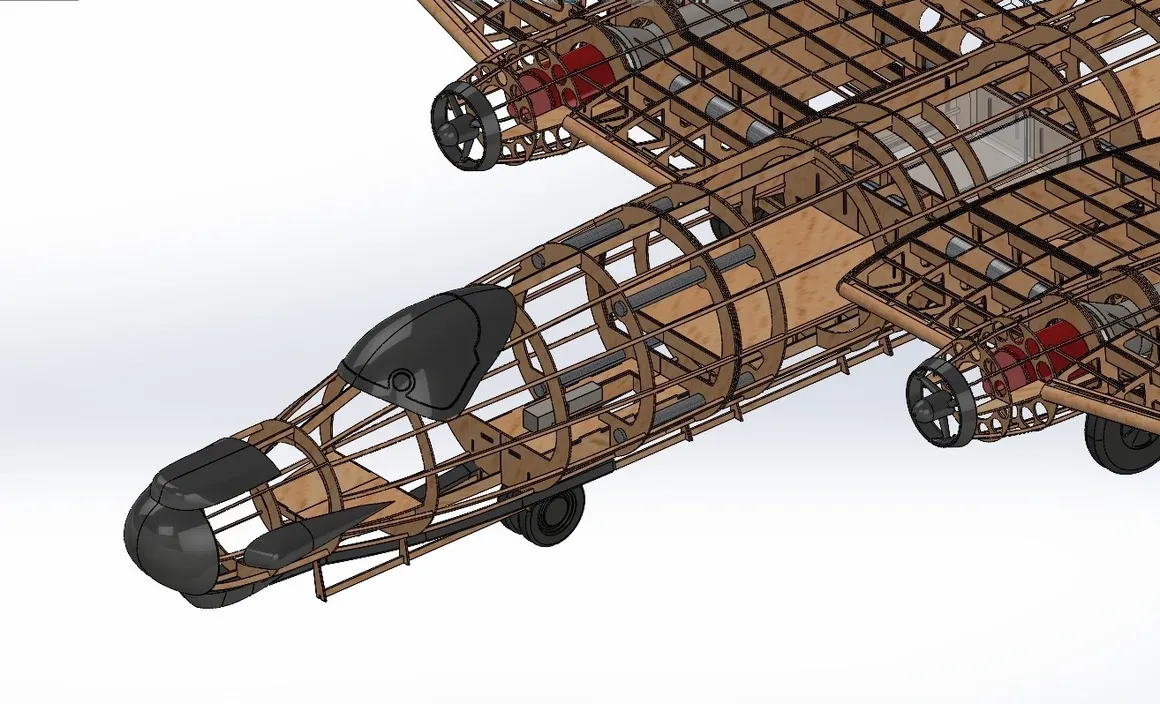

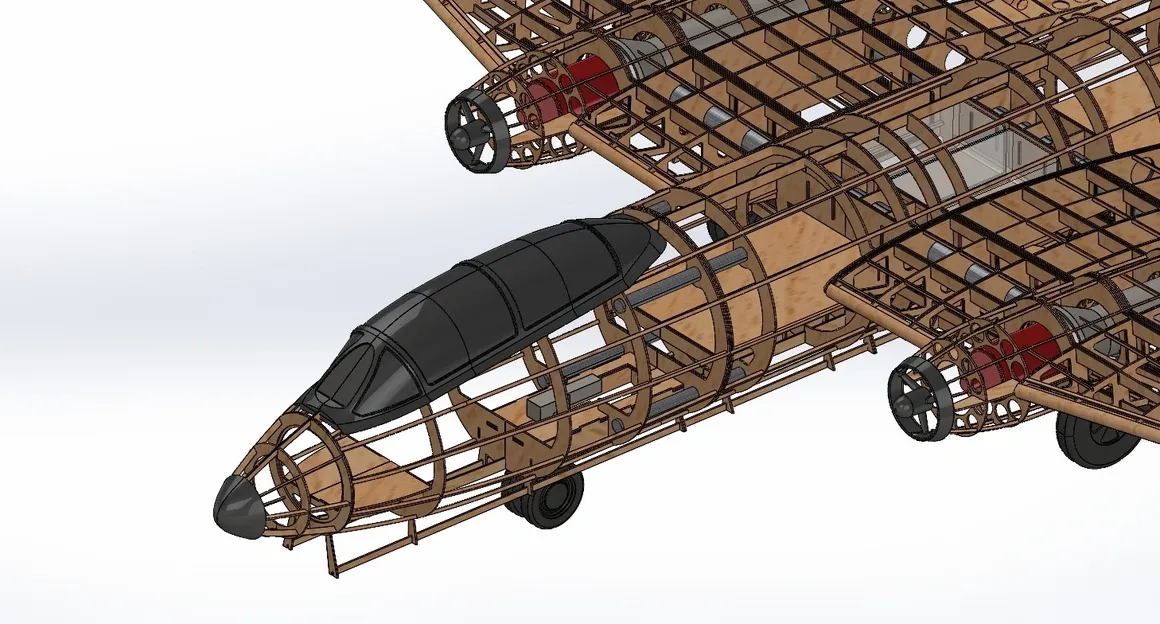

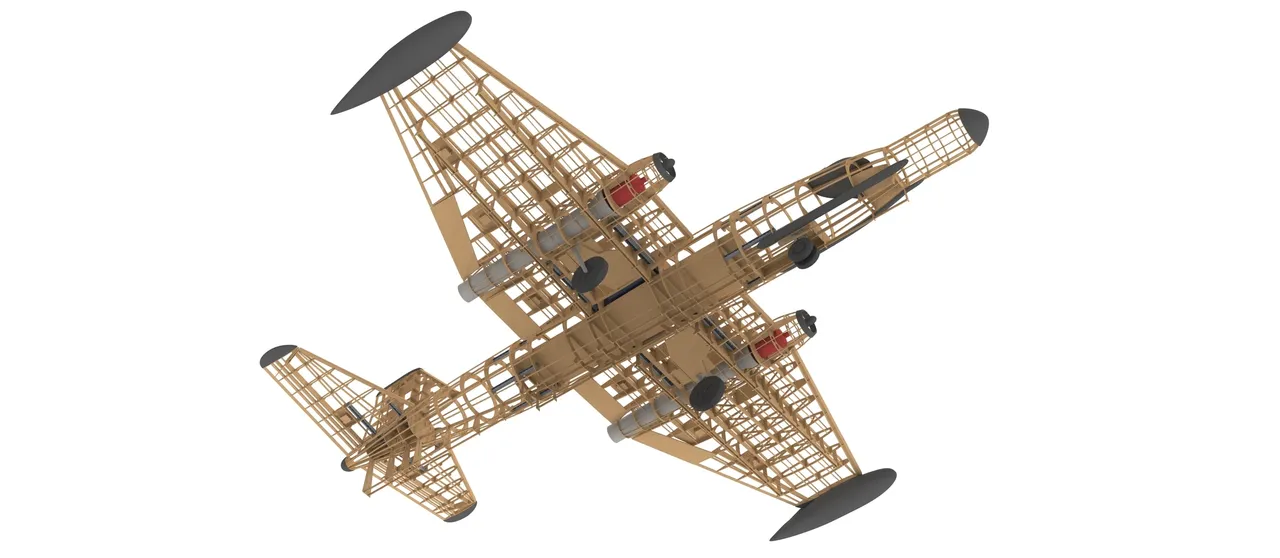

Printed Plan based on CAD data from Royalairframes
Zum Aufbau wird Eigeninitiative und Erfahrung benötigt. Auch sind eigene Lösungen einzubringen
Die RAF Kits sind nur für sehr erfahrenen Modellbauer geeignet.
Required for completion: Planking wood, strips, covering material
This laser-cut kit is MADE in GERMANY and manufactured especially for you with a selected mix of materials, the highest precision, and passion.
We are officially licensed by ROYALAIRFRAMES - We guarantee minimal laser cut marks thanks to the use of state-of-the-art machines.
We only use selected and certified materials:
• Aircraft plywood
• AAA balsa wood
• IBRACO lightweight plywood with up to 20% weight advantage over conventional poplar.
For RAF, Fun Modelbau is only a laser cutting service.
The rights to the model designs generally belong to RAF.
IMPORTANT INFORMATION:
- Pls. choose above. You need the RAF License to build this kit
1. License needed: Contains: 3D Printfiles, 2D Cad files
2. License not needed
Production and delivery:
• Delivery is insured via DHL, with payment in advance, PayPal, credit card, or cash on delivery
• Delivery time approx. 3.5 weeks from receipt of payment (deviations possible during the construction season)
We generally manufacture our construction kits in sequence. We ask for your understanding in this matter.
This is the only way this service can still be offered in such a wide variety today.
