The Fokker Eindecker were braced single-wing combat aircraft with twist control, developed and produced during World War I by Anton Herman Gerard Fokker for the German Air Force. The aircraft underwent further development in several variants and were used under the designations Fokker E.I to E.IV until around 1916.
The Fokker E.III arrived at the front in July 1915 and were considered a secret weapon. They were initially used purely defensively as escorts for unarmed reconnaissance aircraft. However, after the flying aces Wintgens, Boelcke, and Immelmann achieved their first aerial victories in the fall of 1915, more and more German pilots went on the offensive. Soon, Allied losses mounted, and by the winter of 1916, German Fokkers dominated the skies over the Western Front.

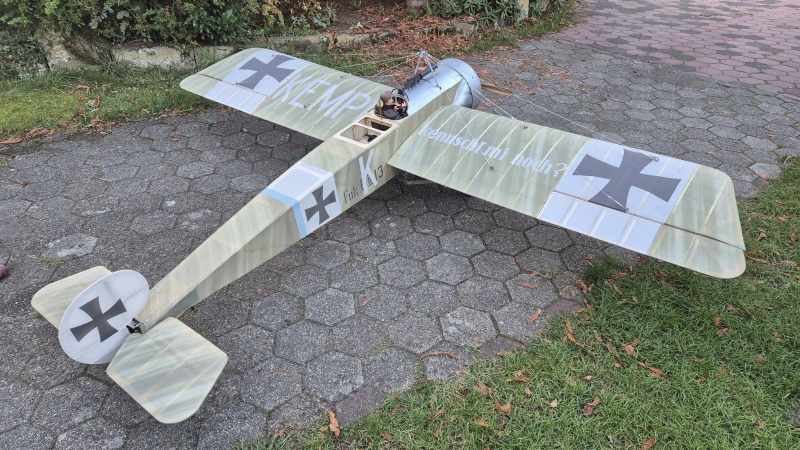

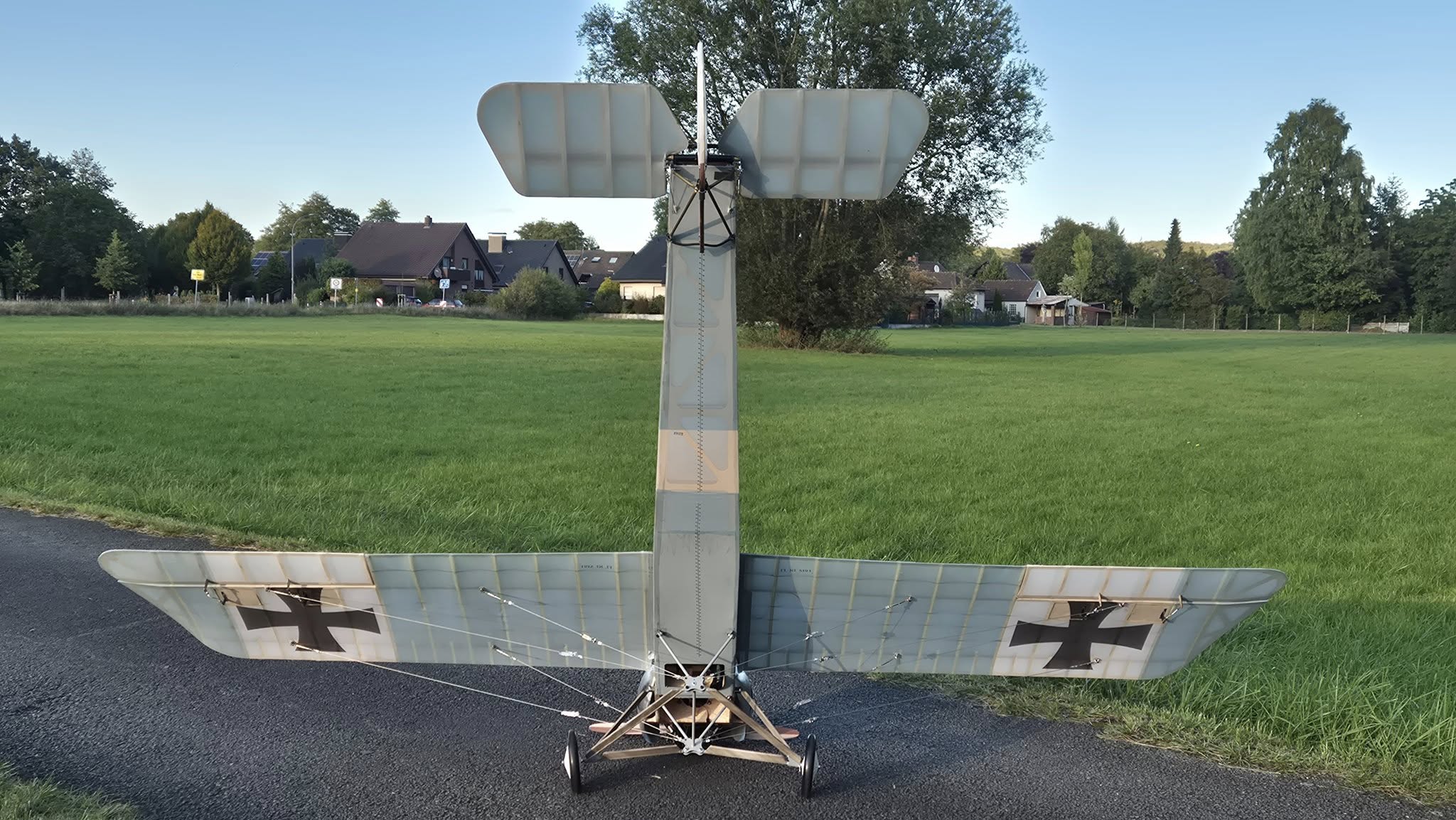

A replica that is as close to the original as possible, practical to handle, and suitable for all occasions—these are the characteristics of our model of the Fokker E.III.
For us, this means short assembly times, good flight characteristics, and a wide range of uses, so that it can also be flown at higher wind speeds.
Fuselage construction:
The fuselage, wings, and tail are made of wood. The landing gear, the dome for the bracing, and the linkage parts for the tail are made of stainless steel.
The fuselage is assembled using our plug-in system, eliminating the need for a complex strip construction.

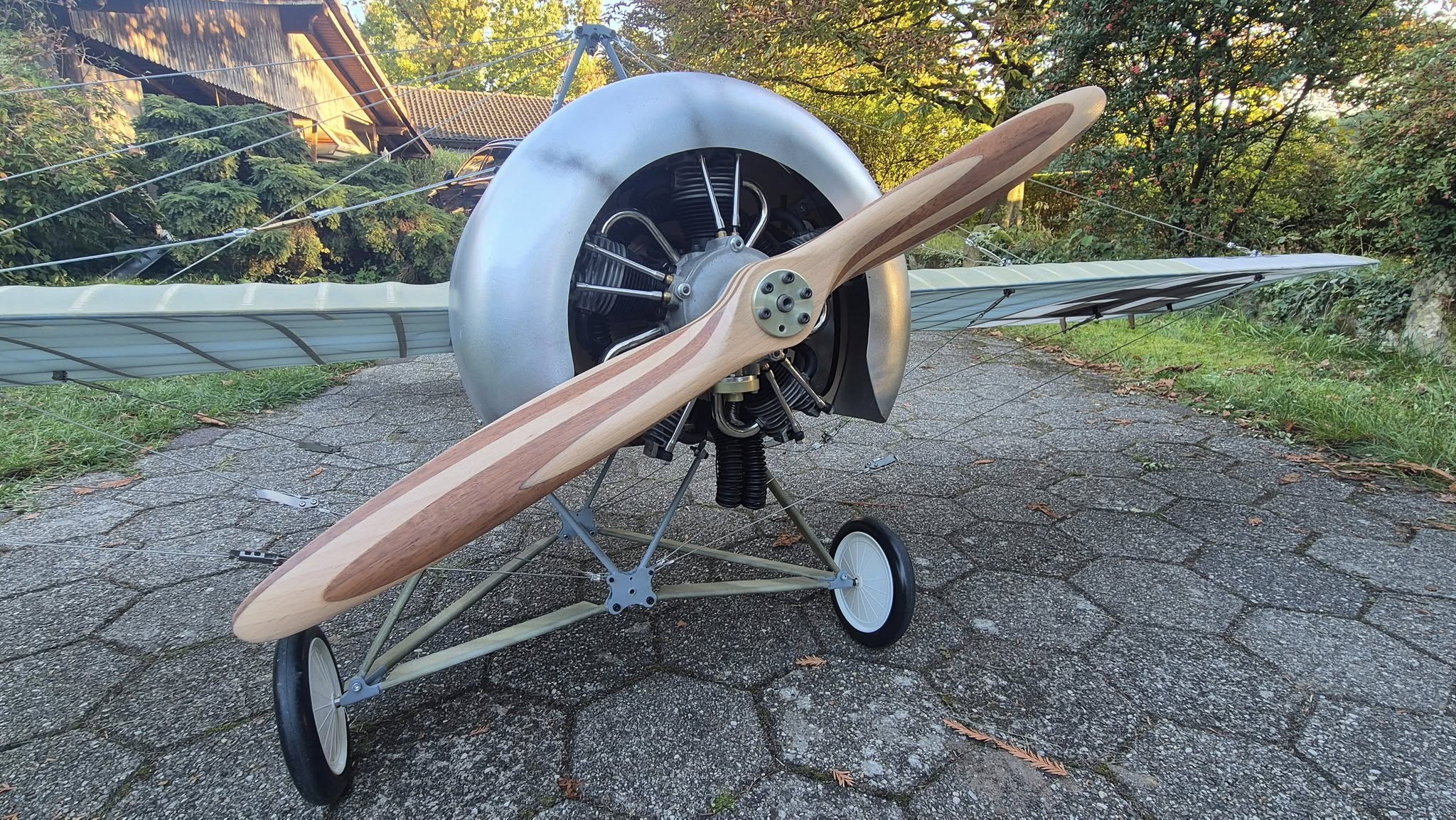

The engine cowling and the transitions from the cowling to the fuselage are included in the kit as GRP parts.
----------------------------------------------------------------------------------
Kit contents:
- All necessary laser-cut parts
- All turnbuckles
- Tensioning cables
- 8x FastRigg quick-release toggles
- Crush sleeves
- Fittings for the entire model
- Strongal plug-in tube for the pendulum rudder
- Cover tubes for tailplane
- Steeltube tensioning tower kit, deflection rollers, fittings
- Landing gear kit, with all fittings, steel tubes, eye bolts, and screws
- Spring steel axles
- Scale wheels from DUBRO
- Modern (hidden) landing gear damping system with gas pressure
- Scale Schwarzlose MG kit with accessories
- Aluminum sheets
- Screws
- Strips
- GFK engine cowling
- GFK jaws
- Diagonal tape for wing ribs
- 1/1 plan in German and English, basic description for assembly
- Soldering jig for the landing gear
- Windshield with frame
- Scale seat kit
----------------------------------------------------------------------------------
Controls:

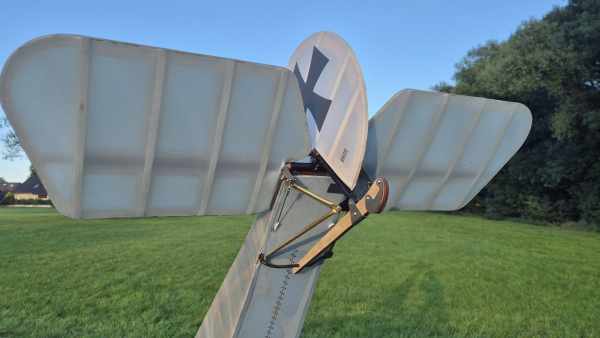

The model is controlled via throttle, elevator, ailerons, and rudder. The rudders are designed as pendulum rudders, true to the original.
Wing twist:
If you want to build the model without ailerons, the kit includes extra ribs to replace the ailerons. Our tension tower has 2 scale deflection rollers that allow the rear upper wing cables to run freely, enabling twisting. The twisting control is sketched in the plan, but requires some work on your part.
Technical data:
Wingspan: 3170 mm
Length
Engine cowling diameter: 345 mm
Engine: 65-150 cc
Weight
Profile: Original Fokker
___________________________________________________
Delivery
Currently only available for pre-order, production will start at the end of July 2025
Orders will be processed in the order in which they are received.
